Note:
1. Disassembling the miner without permission of after-sales staff will void your warranty (check my warranty). Click our after-sales terms to learn more.
2. Ensure that the installation is done correctly before restarting the miner.
3. Incorrect installation may void your warranty.
After-sales staff refer to the fans as Fan 1–4, matching the numbers 1–4 in the figure.
1. Remove the Fan from the Miner

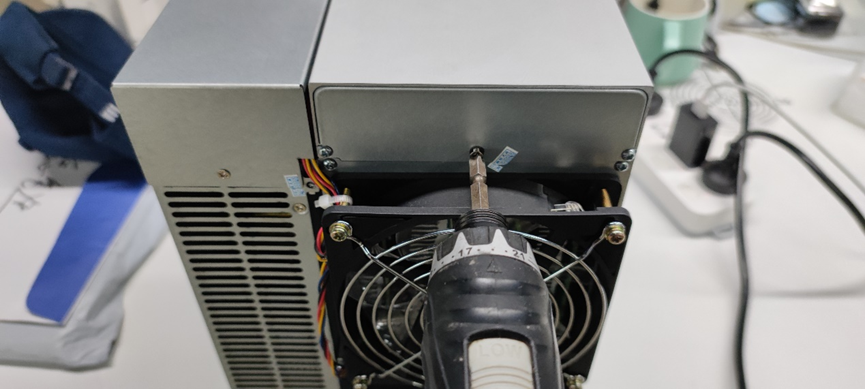

1.1 Remove the screws located above the fans at the back of the miner

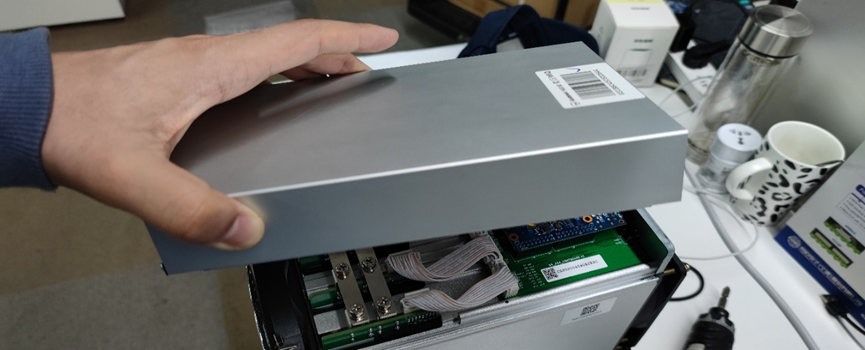

1.2 Remove the top case.
1.3 Disconnect the ribbon cables that connect to the main control board.
1.4 Unscrew the fans.
1.5 Remove the fan grille.
1.6 Remove the fans.
2. Install the Fan
2.1 Place the new fan and grille in the correct position.
Remember to confirm the airflow direction of the fan during installation, and make sure all fans on the same side have the same airflow direction.
Tip: The airflow arrow should point toward the side with the indicator lights.
Installing the fan in the wrong direction may lead to the miner shutting down at high temperatures, and even causing irreversible damage!
2.2 Tighten the screws of the fan.
2.3 Plug the ribbon cables. Straighten the cables to avoid affecting the installation of the top case.
2.4 Carefully install the top case of the miner.
2.5 Tighten screws at the back of the miner. And then installation complete!
