BOX Plus Instructions for Removing and Installing the Fan

Note:

1. Disassembling the miner without permission of after-sales staff will void your warranty (check my warranty). Check Goldshell after-sales terms to learn more.

2. Ensure that the installation is done correctly before restarting the miner.

3. Incorrect installation may void your warranty.

Disassembling the Fan

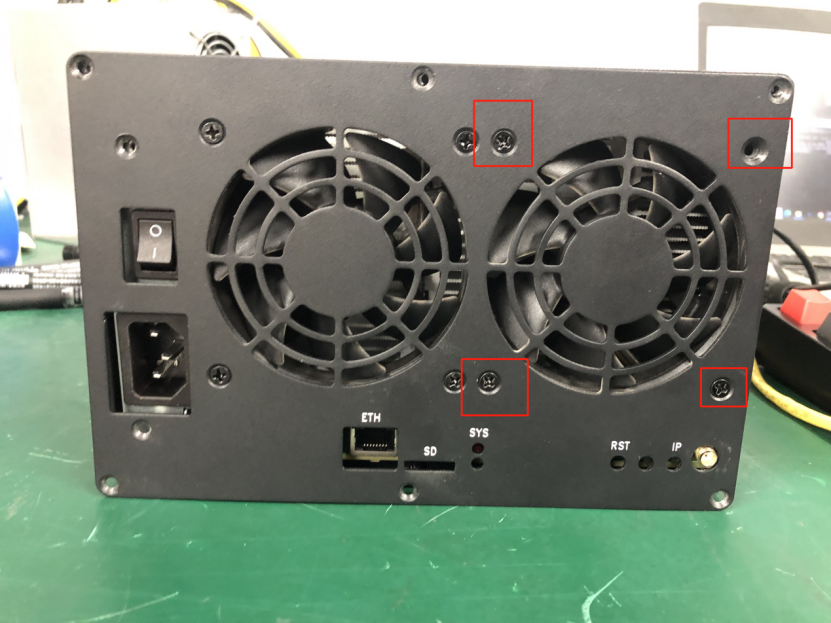

1. Remove the screws on the fan surface, paying attention to only remove the outer eight screws (as shown in Figure 1).

Figure 1

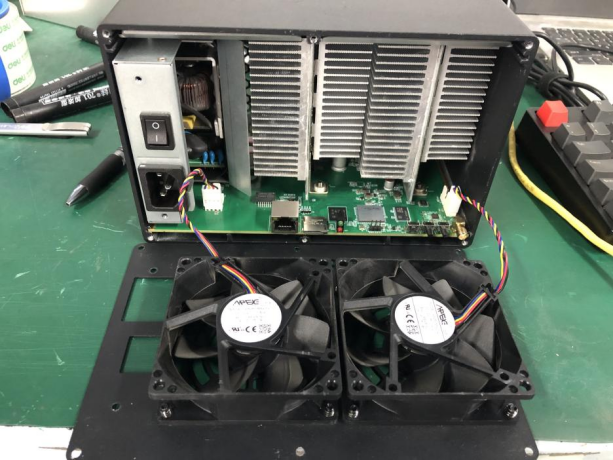

2. Slowly pull out the fans (as shown in Figure 2). Do not pull the fan forcefully, as this may damage the fan connector cable.

Figure 2

3. Unplug the row lines, ensuring to grip the sides of the fan connector with your fingers while pulling. (as shown in Figure 3).

Figure 3

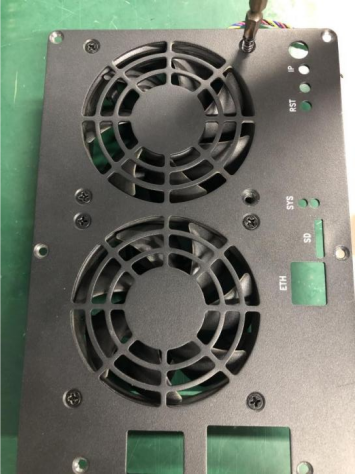

1.4 Remove the four screws around the fan (as shown in Figure 4).

Figure 4

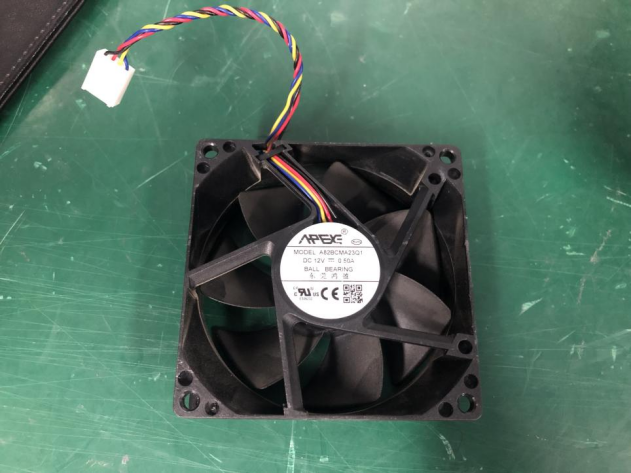

1.5 Remove the fan (as shown in Figure 5).

Figure 5

Install the Fan

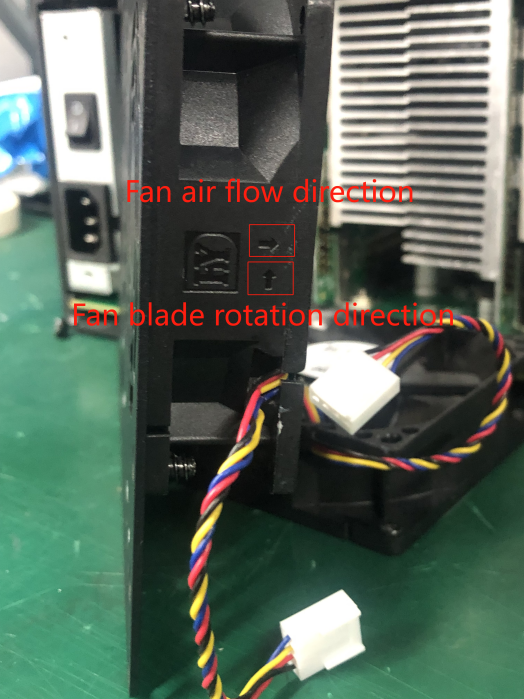

1. Please refer to Figure 6 and observe the symbol on the fan. When installing the fan on the metal plate, make sure that the "AIR FLOW" arrow points towards the inside of the miner (as shown in Figure 6). Arrow marks are placed on either side (as shown in Figure 7). Secure the screws of the fans in their respective positions (as shown in Figure 8).

Figure 6

Figure 7

Figure 8

2. Plug the fan connector into the control board (as shown in Figure 9).

 Figure 9

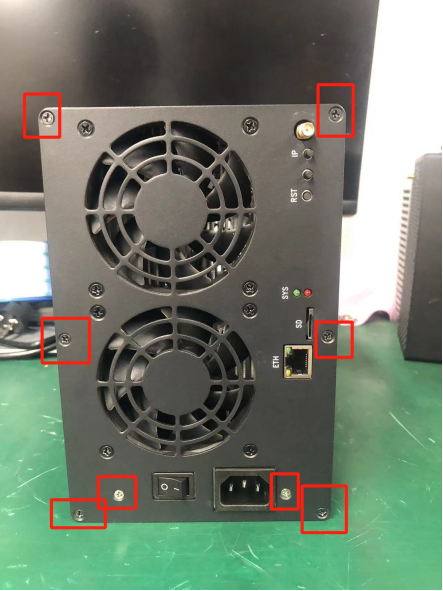

3. After securing the eight screws, the fan is successfully installed (as shown in Figure 10).

Figure 10

Make sure all screws are tightened securely!
