ECHO Series Instructions for Removing and Installing the Control board

Note:

1. Disassembling the miner without permission of after-sales staff will void your warranty (check my warranty). Check our after-sales terms to learn more.

2. Ensure that the installation is done correctly before restarting the miner.

3. Incorrect installation may void your warranty.

1.Disassembling the Control board

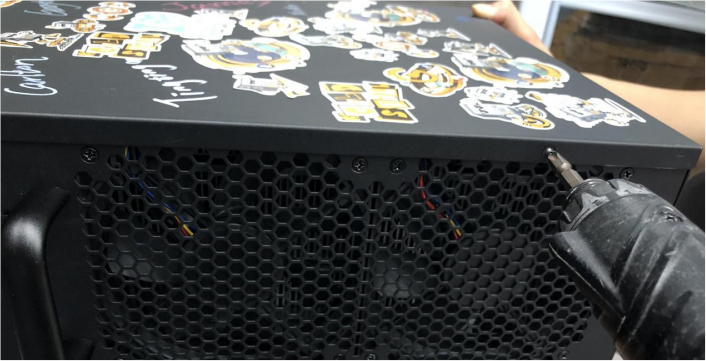

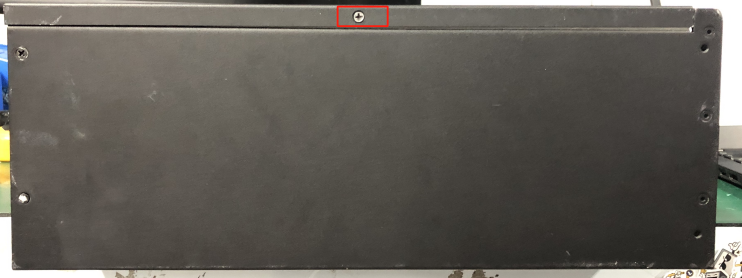

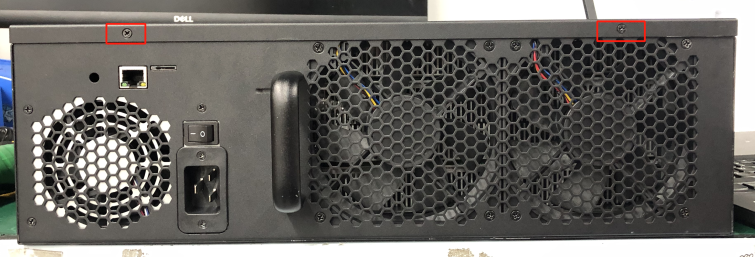

1. 1 Remove these screws around the upper plate (as shown in Figure 1,2 and 3).

Figure 1

Figure 2

Figure 3

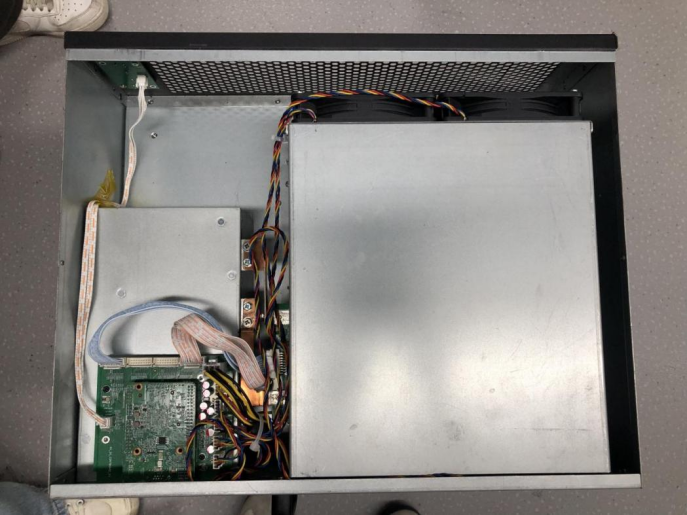

1. 2 Slowly open the upper plate. (as shown in Figure 4).

Figure 4

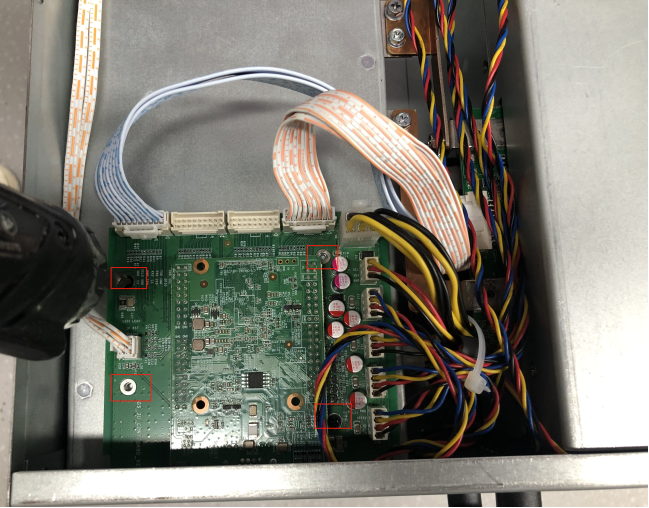

1. 3 Remove the four screws on the control board (as shown in Figure 5).

Figure 5

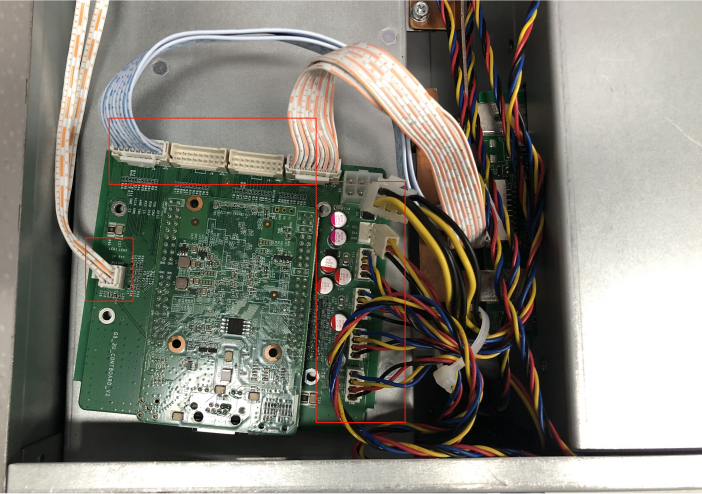

1. 4 Unplug all the row lines (as shown in Figure 6).

Figure 6

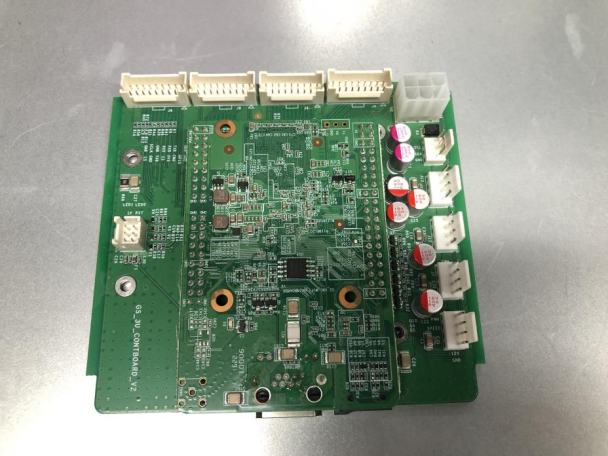

1. 5 Slowly pull out the control board (as shown in Figure 7).

Figure 7

2. Install the Control board

2.1 Plug in all the row lines. (as shown in Figure 8).

Figure 8

2.2 Install the four screws in the control board (as shown in Figure 9).

Figure 9

2.3 Put the upper plate back then secure all the screws (as shown in Figure 10).

Figure 10

Make sure all screws are tightened securely!
