BOX Plus Instructions for Removing and Installing the Hashboard

Note:

1. Disassembling the miner without permission of after-sales staff will void your warranty (check my warranty). Check Goldshell after-sales terms to learn more.

2. Ensure that the installation is done correctly before restarting the miner.

3. Incorrect installation may void your warranty.

Disassembling the Hashboard

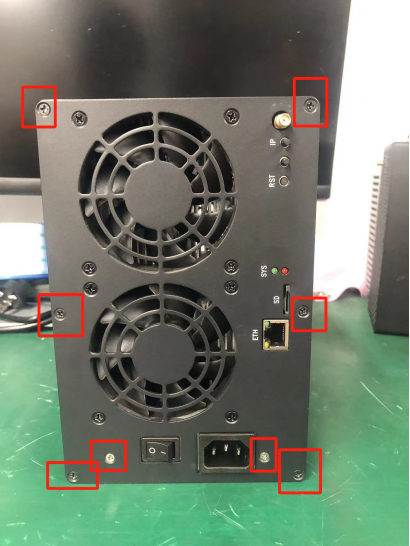

1. Remove the screws on the fan surface, paying attention to only remove the outer eight screws (as shown in Figure 1).

Figure 1

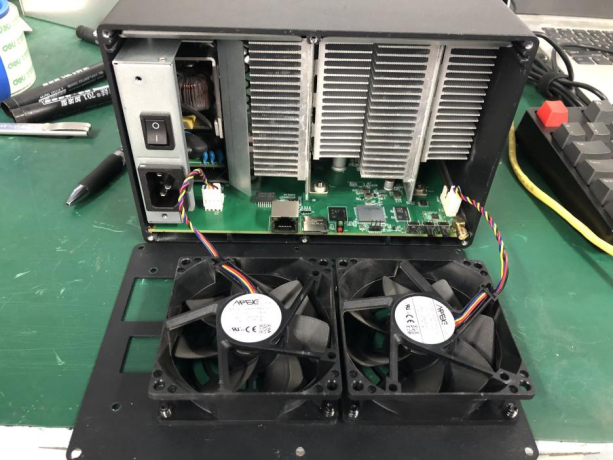

2. Slowly pull out the fans (as shown in Figure 2). Do not pull the fan forcefully, as this may damage the fan connector cable.

Figure 2

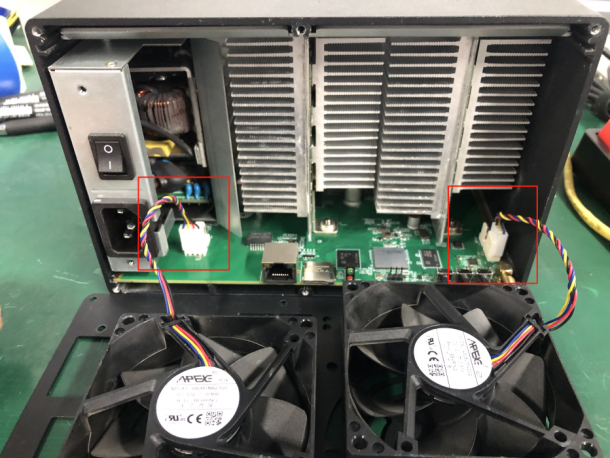

3. Unplug the row lines, ensuring to grip the sides of the fan connector with your fingers while pulling. (as shown in Figure 3).

Figure 3

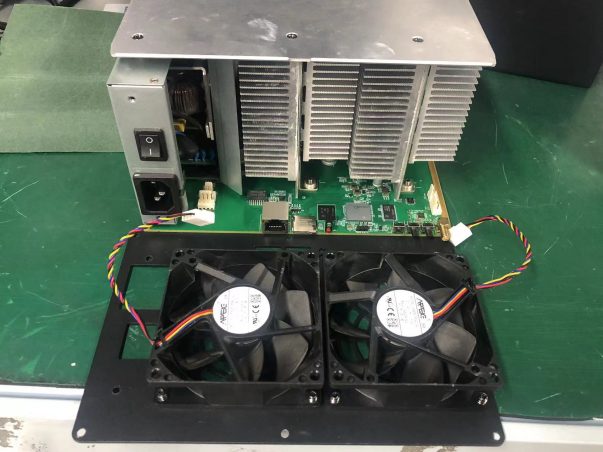

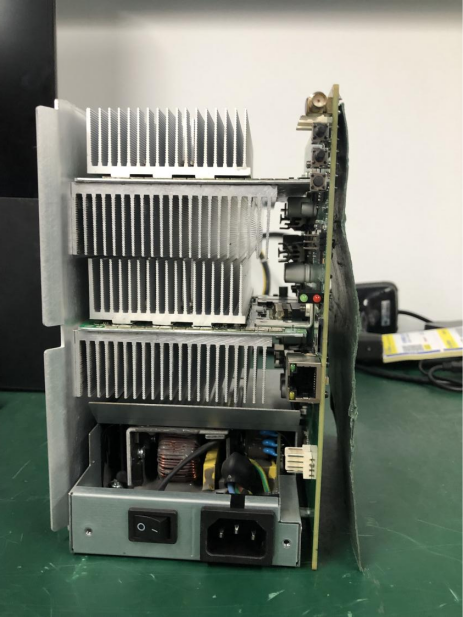

4. Slowly pull out the control board, hash board and PSU (as shown in Figure 4 and 5).

Figure 4

Figure 5

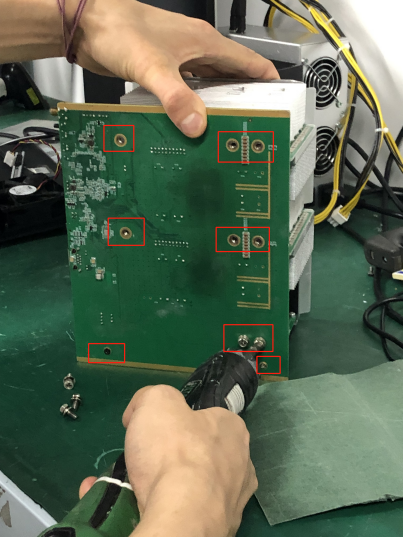

5. Remove all screws connecting control board to hashboard (as shown in Figure 6).

Figure 6

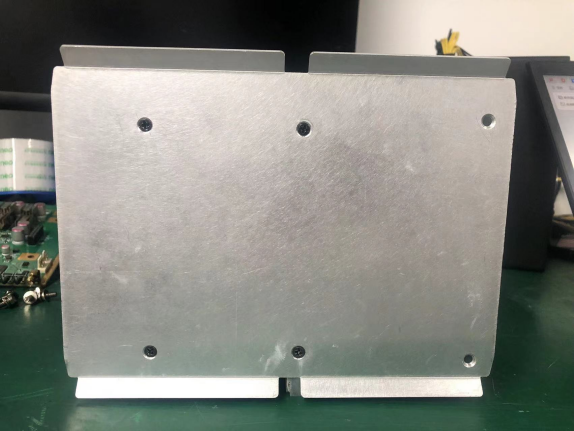

6. Remove the screws connecting hashboard to baseplate (as shown in Figure 7 and 8).

Figure 7

Figure 8

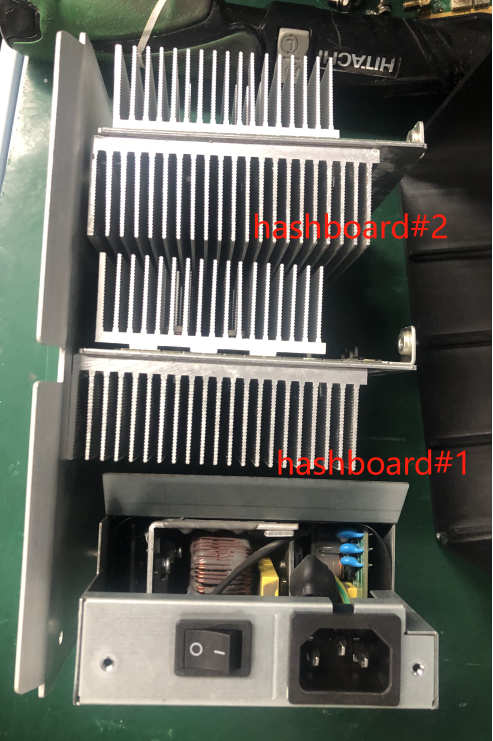

7. Pull out the hashboard (as shown in Figure 9).

Figure 9

Install the Hashboard

1. Secure the screws on the baseplate (as shown in Figure 10).

Figure 10

2. Align the pins of the control board with the holes on the hashboard and insert it slowly. Ensure the pins are aligned and not bent before inserting. Do not use excessive force (as shown in Figure 11).

Do not place the control board face down before all the screws are properly installed to avoid bending any components on the board!!!

Figure 11

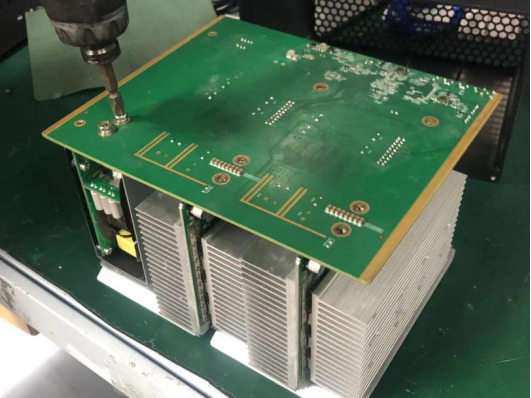

3. Align the screw holes on the hashboard with the screw holes on the control board. Secure all the screws (as shown in Figure 12).

Figure 12

4. Plug the fan connector into the control board (as shown in Figure 13).

Figure 13

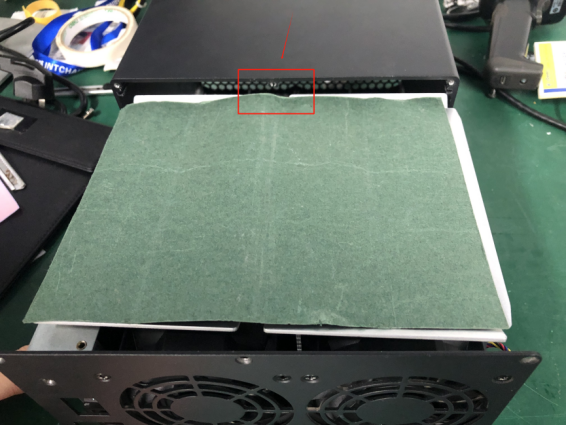

5. Place the hash board inside the box, aligning its edge with the internal groove. Insulating paper is placed between the baseplate and box to prevent short circuits (as shown in Figure 14).

Figure 14

6. After securing the screws, the hashboard is successfully installed (as shown in Figure 15).

Figure 15

Make sure all screws are tightened securely!
