BOX Plus Instructions for Removing and Installing the PSU

Note:

1. Disassembling the miner without permission of after-sales staff will void your warranty (check my warranty). Check Goldshell after-sales terms to learn more.

2. Ensure that the installation is done correctly before restarting the miner.

3. Incorrect installation may void your warranty.

Removing the PSU

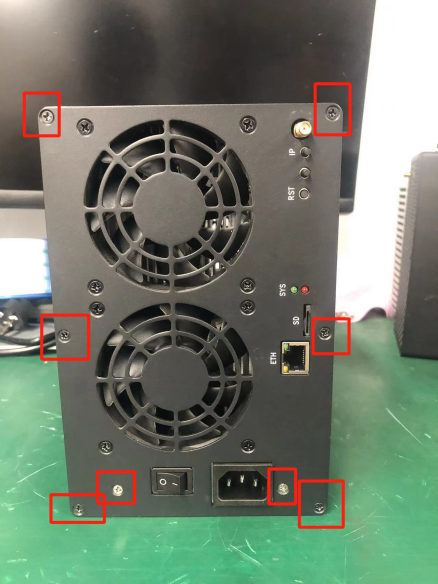

1. Remove the screws on the fan surface, paying attention to only remove the outer eight screws (as shown in Figure 1).

Figure 1

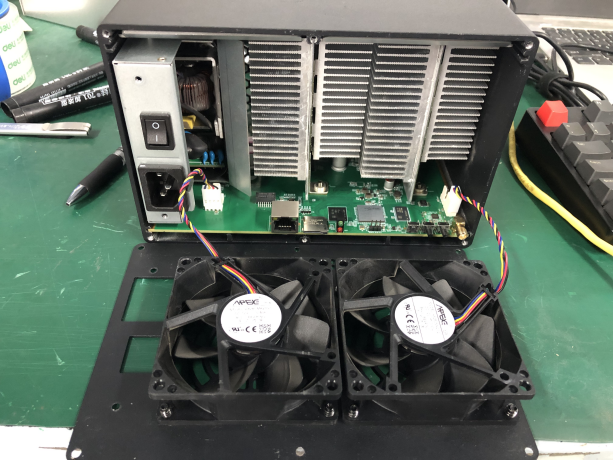

2. Slowly pull out the fans (as shown in Figure 2). Do not pull the fan forcefully, as this may damage the fan connector cable.

Figure 2

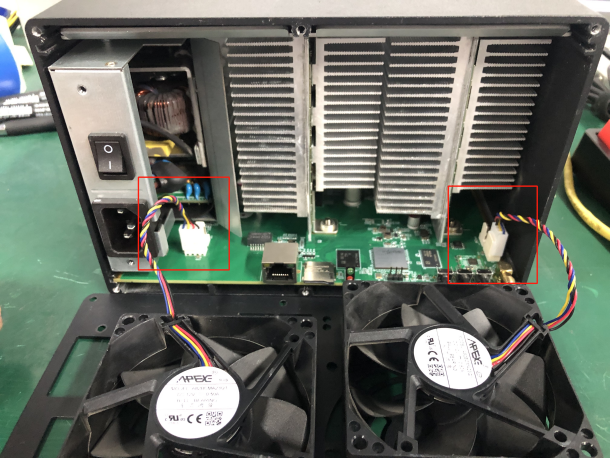

3. Unplug the row lines, ensuring to grip the sides of the fan connector with your fingers while pulling. (as shown in Figure 3).

Figure 3

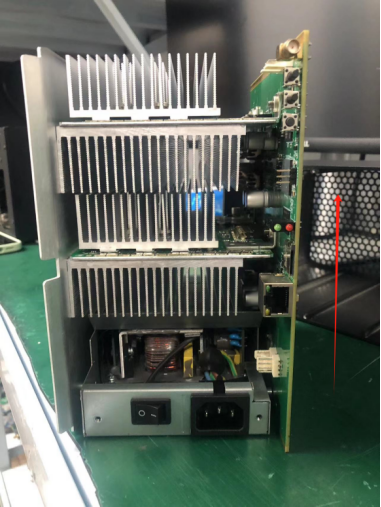

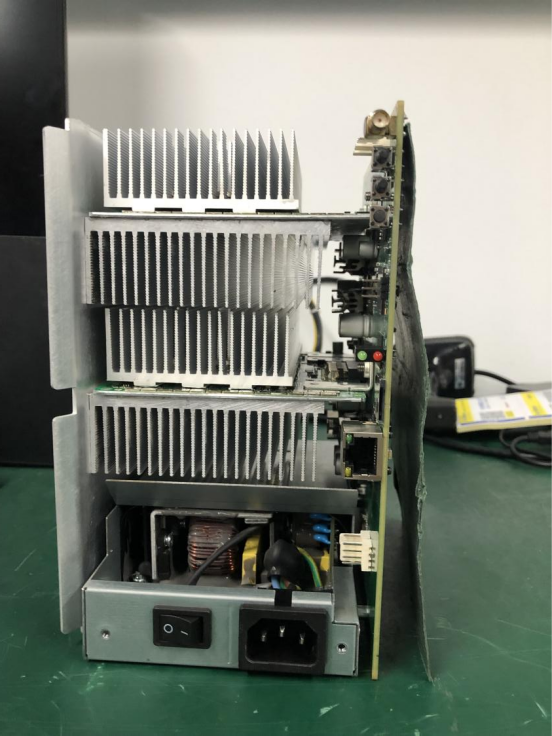

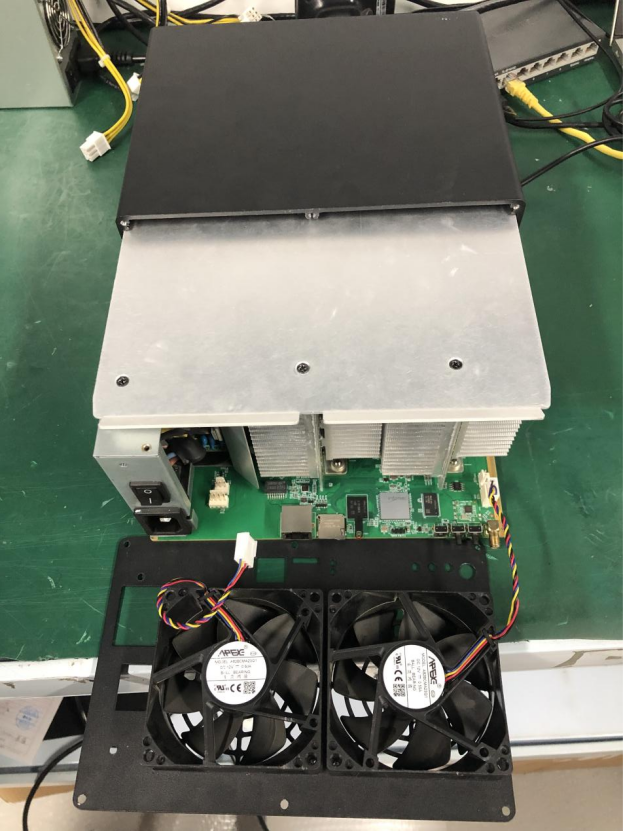

4. Slowly pull out the control board, hashboard and PSU (as shown in Figure 4 and 5).

Figure 4

Figure 5

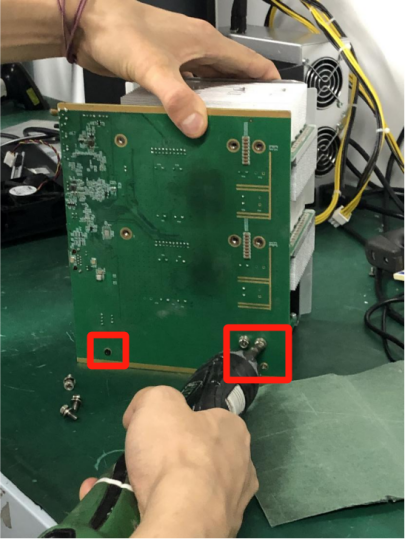

5. Remove four screws connecting control board to PSU (as shown in Figure 6).

Figure 6

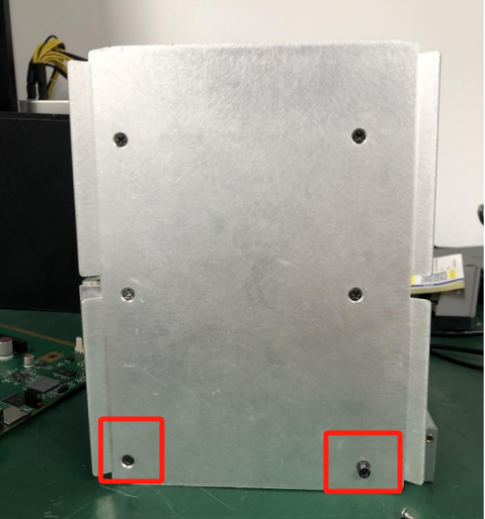

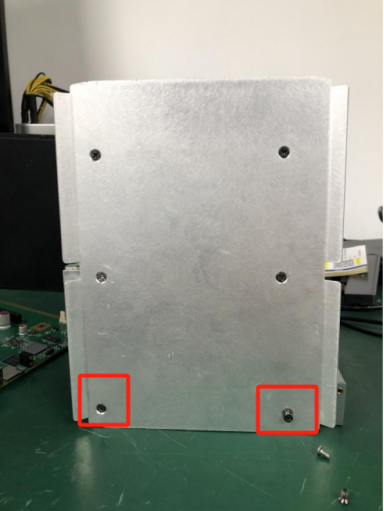

6. Remove the screws connecting PSU to baseplate (as shown in Figure 7).

Figure 7

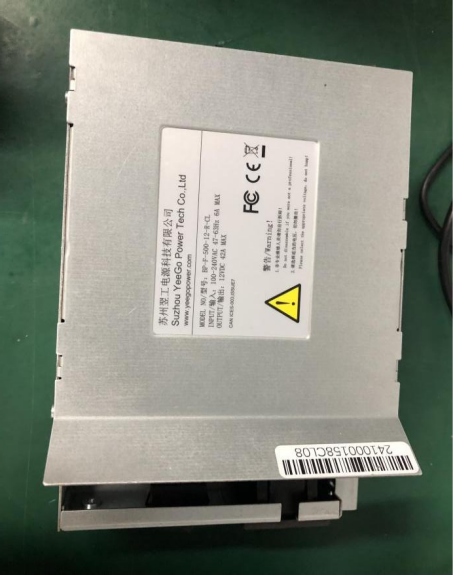

7. Remove the PSU (as shown in Figure 8 and 9).

Figure 8

Figure 9

Install the PSU

1. Align the screw holes on the PSU with the screw holes on the control board and the baseplate. Secure all the screws (as shown in Figure 10 and 11).

Figure 10

Figure 11

2. Plug the fan connector into the control board (as shown in Figure 12).

Figure 12

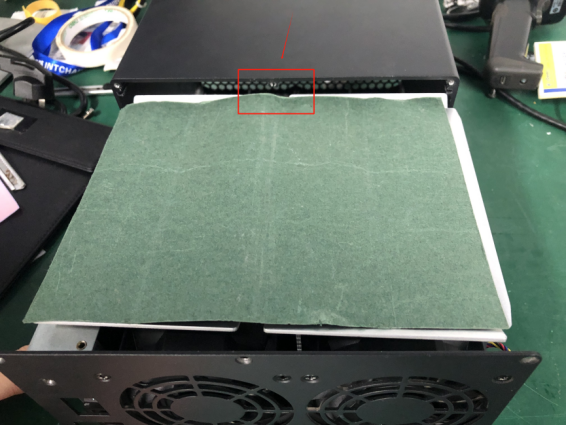

3. Place the hashboard inside the box, aligning its edge with the internal groove. Insulating paper is placed between the baseplate and box to prevent short circuits (as shown in Figure 13).

Figure 13

4. After securing the screws, the PSU is successfully installed (as shown in Figure 14).

Figure 14

Make sure all screws are tightened securely!
