BOX Series-Instructions on Replacing the Fan

Note:

1. Disassembling the miner without permission of after-sales staff will void your warranty (check my warranty). Click after-sales terms to learn more.

2. Ensure that the installation is done correctly before restarting the miner.

3. Incorrect installation may void your warranty.

After receiving the new fan, please ensure to check the condition of the fan to make sure it's in good condition.

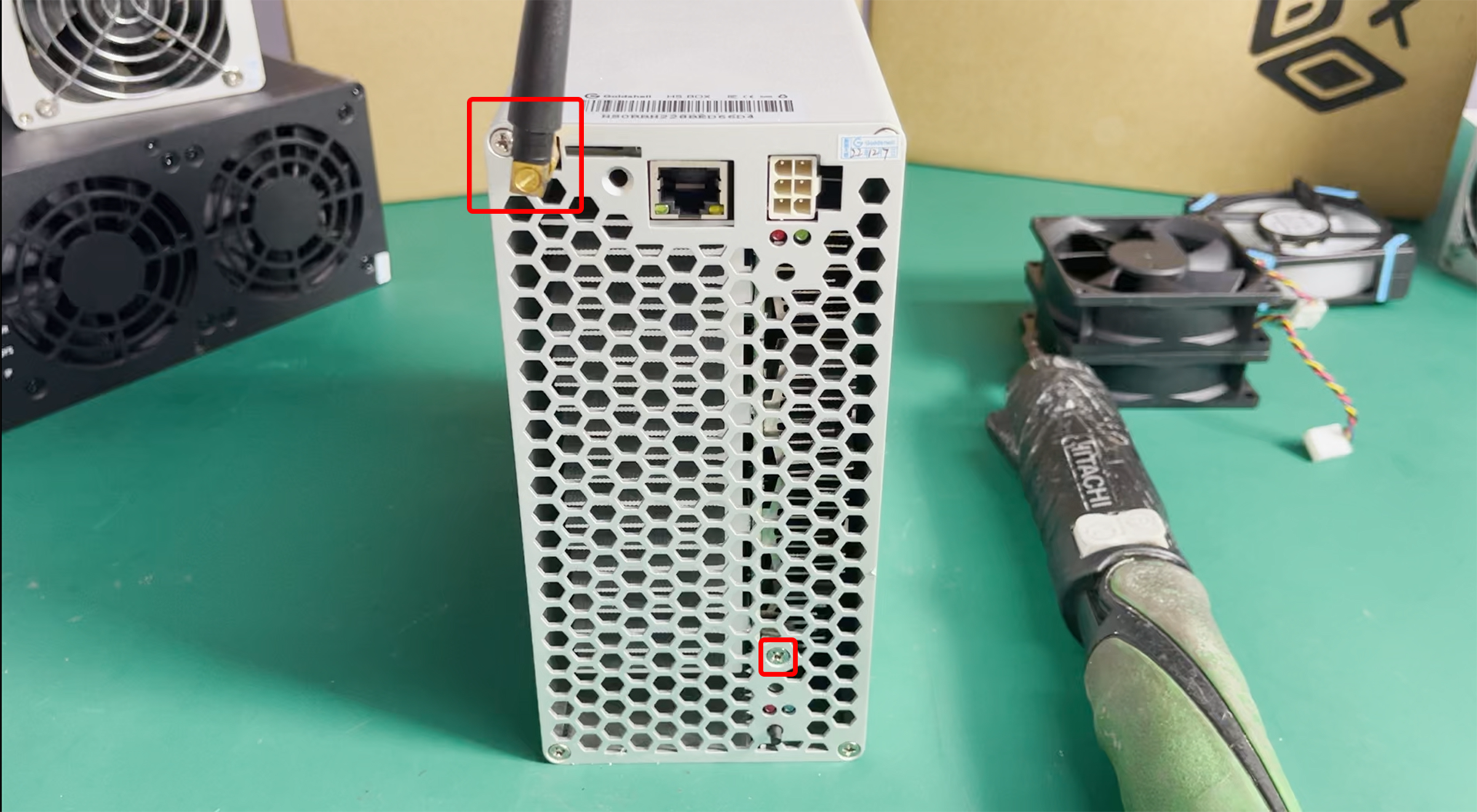

Please ensure that you have disassembled the WIFI antenna before proceeding with the next steps.

1. Removing the Defective Fan

1.1 Unscrew the cover.

For the Wi-Fi version, please remove the black Wi-Fi antenna before proceeding.

1.2 Slowly pull out the hash board; unplug the row lines.

1.3 Make sure the position of the bad fan, please take the following picture for reference. After-sales staff refer to "fan #1, fan #2" or "fan 1, fan 2" as shown in the figure by No.1 and No.2.

1.4 Unscrew the defective fan(s)

2. Installing the Fan

Put the new fan and grille into the correct position, then install. You can take the above tutorial for reference.

Remember to confirm the airflow direction when installing.

TIP: the air flow arrow should point to the side where there are indicator lights.

Installing the fan in the wrong direction may lead to the miner shutting down at high temperatures, and even causing irreversible damage!

Plug the fan connector into the hash board. Do not use excessive force, as it may damage the pins and prevent the miner from functioning properly.

3. Install the hash board.

 3.1 Place the hash board inside the box, aligning its edge with the internal groove, as marked in the picture.

3.2 Align the IP button and the WiFi module with the air outlet baffle.

3.3 Secure the hash board in place by installing the four screws.

The fan replacement is now complete!
